ID # 61535900

2026 Sea Fox 231B Bay Fox

Call for Price
Overview

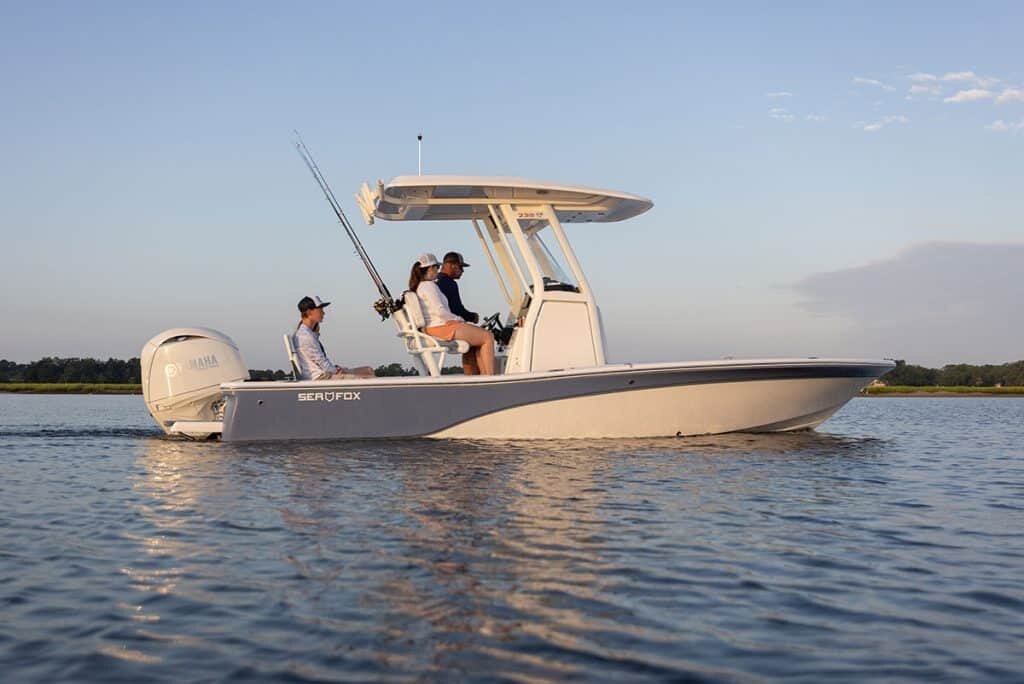

2026 Sea Fox 231B Bay Fox 231 Bay Fox
From Casting Deck to Comfort in Seconds

The 231B offers a versatile fishing platform with many of the same advantages as the 251B in a slightly smaller package. Integrated fiberglass swim platforms on the port and starboard plane pods provide easy access in and out of the boat. Whether you are stalking the flats or trolling offshore, the 231B delivers the kind of versatility, smart design, and capability that make the Bay Fox stand out.

Specifications
Model
Bay Fox
Category Name
Boat
Year
2026
Sale Type
New
Manufacturer
Sea Fox
Color
Pearl White ,Marsh Green , Bahama Blue , Artic Blue , Channel Blue ,Silver Shark , Bull Shark
Length
22'4"
Livewells
2
HULL DESIGN
Carolina Flare
Maximum Horsepower
250
dimensions
Beam
8'-6"
Deadrise
15 degrees
Draft (hull)
14"
Bridge Clearance
93"
Centerline Length
22'-4"
Transom Height (Centerline)
25"
weight
Dry Weight
2,225 lbs
Maximum Weight
3,962 lbs
capacity
Fuel Capacity
54 gal
Total Capacity
2,100 lbs
Persons Capacity
8
engines
Maximum Horsepower
250 hp
top standard features

2026 Sea Fox 231B Bay Fox Fusion Apollo Stereo

The Fusion Apollo marine stereo provides rich, dynamic sound to keep the energy going all day on the water.

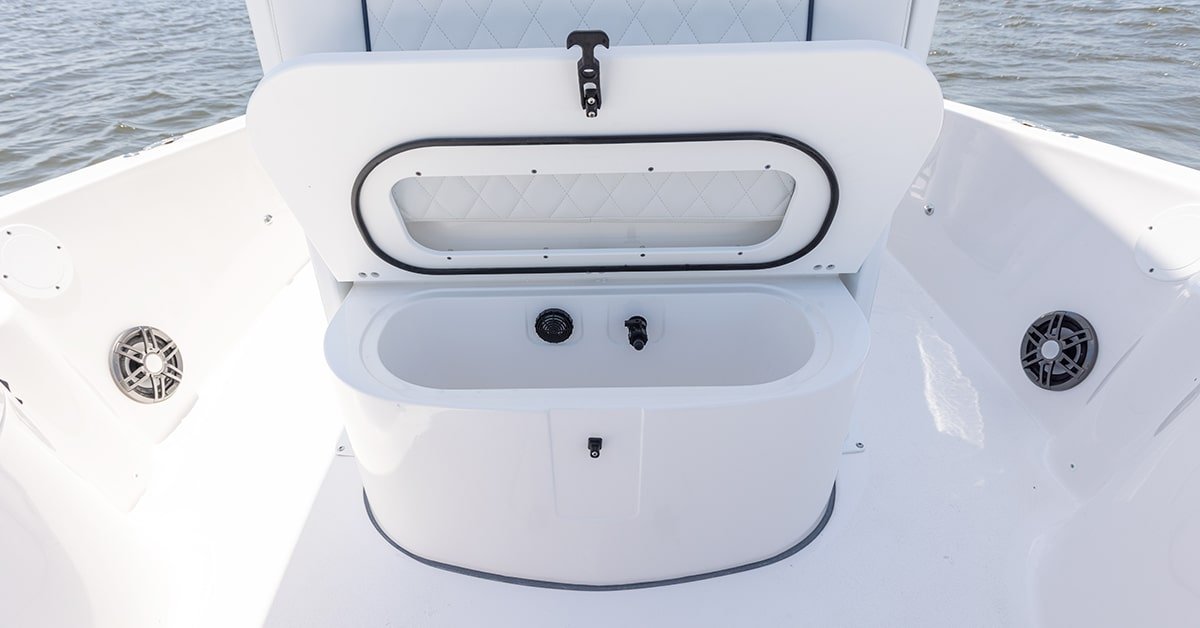

2026 Sea Fox 231B Bay Fox 2 Livewells

Keep bait fresh and active with dual livewells: a 30-gallon transom well and a 12-gallon console well, both supported by 800 GPH aerators.

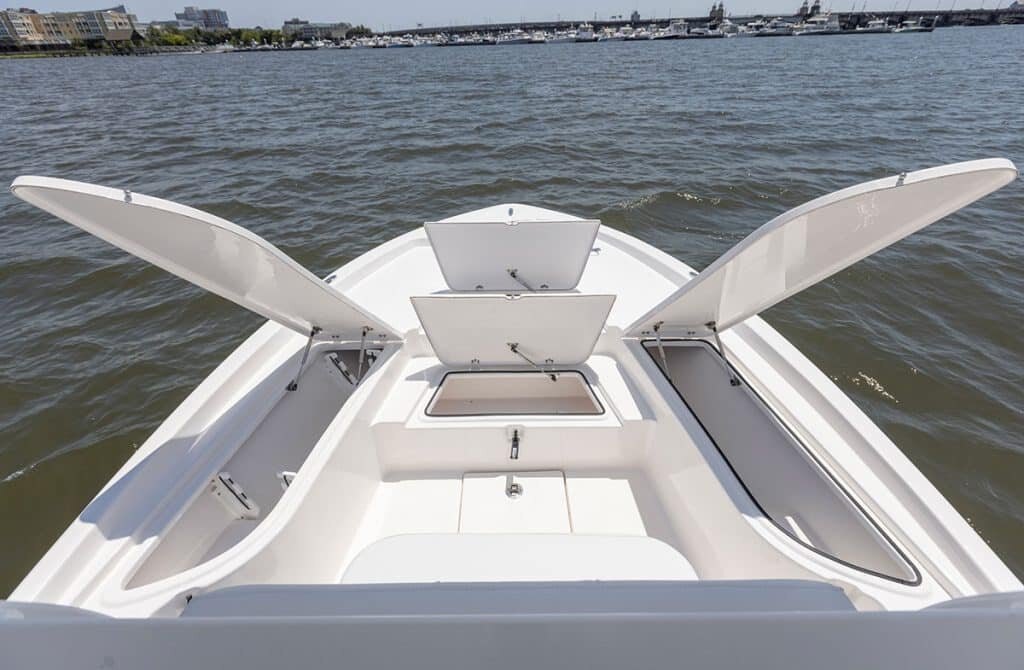

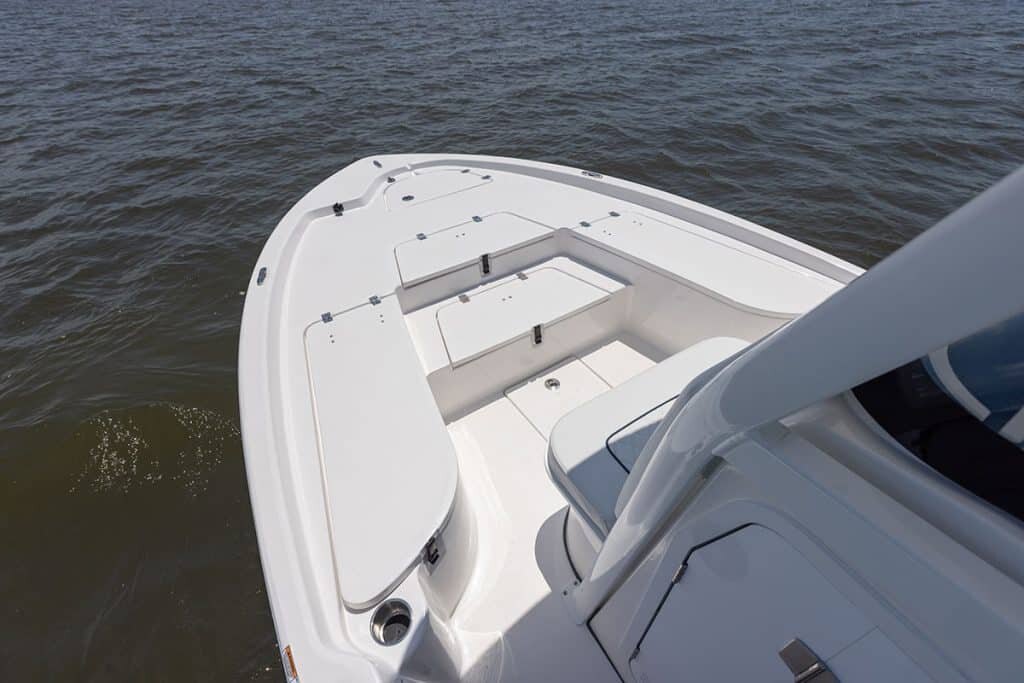

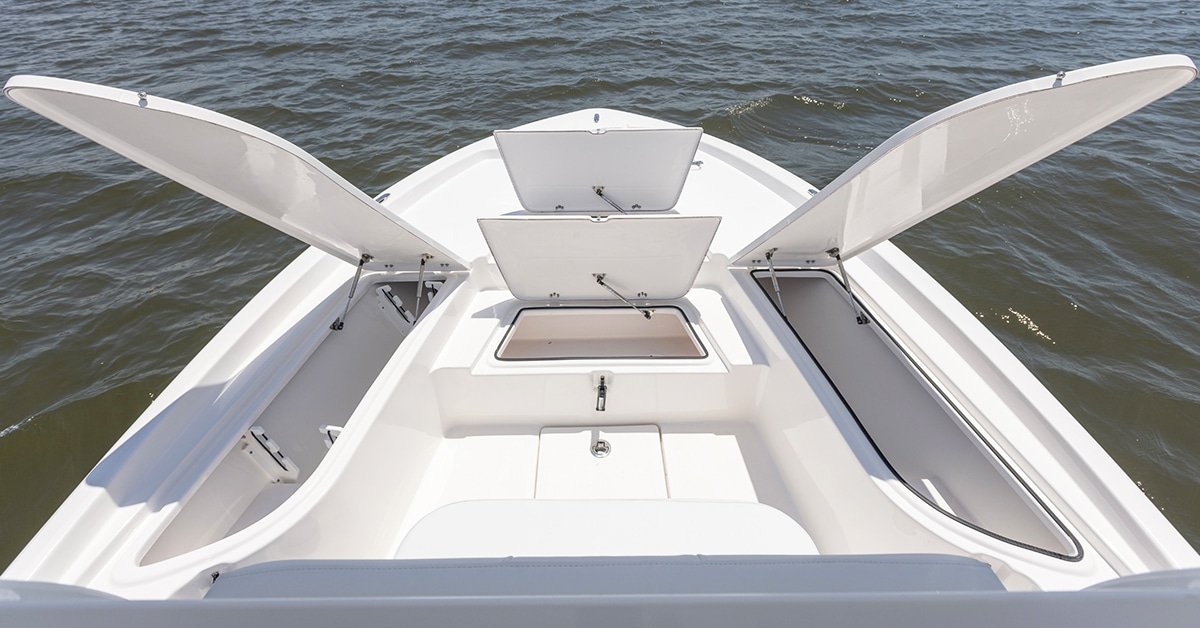

2026 Sea Fox 231B Bay Fox Insulated Bow Storage

Insulated bow storage boxes protect gear, keep catches fresh, and maximize usable storage in the forward deck.

2026 Sea Fox 231B Bay Fox Leaning Post Helm Seating

Designed for adaptable helm comfort, this leaning post includes a backrest and hinged bolsters for both upright bracing and cushioned seating.

Shallow draft access lets you reach waters others can’t

The 231B delivers the full Bay Fox experience in a more compact size. Designed for both serious anglers and adventurous families, it offers a great balance of capability and convenience.

  • Integrated fiberglass swim platforms for easy water access
  • Exceptional fishing platform with proven Bay Fox design
  • Ideal for flats fishing, offshore trolling, or lake fun
  • Sleek, versatile layout that turns heads on any water

Bow:

  • Stainless steel bow eye with chafe plate
  • Anchor compartment with rope storage locker
  • Trolling motor outlet & harness (12/24/36 volt)
  • LED navigation lights
  • LED livewell light

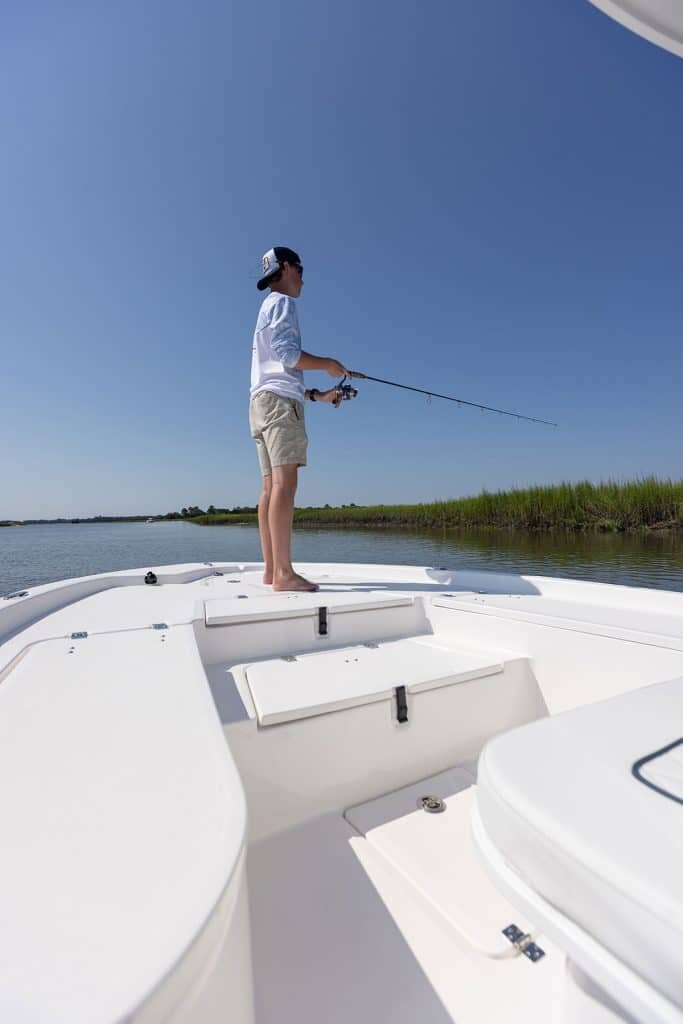

  • Large casting deck

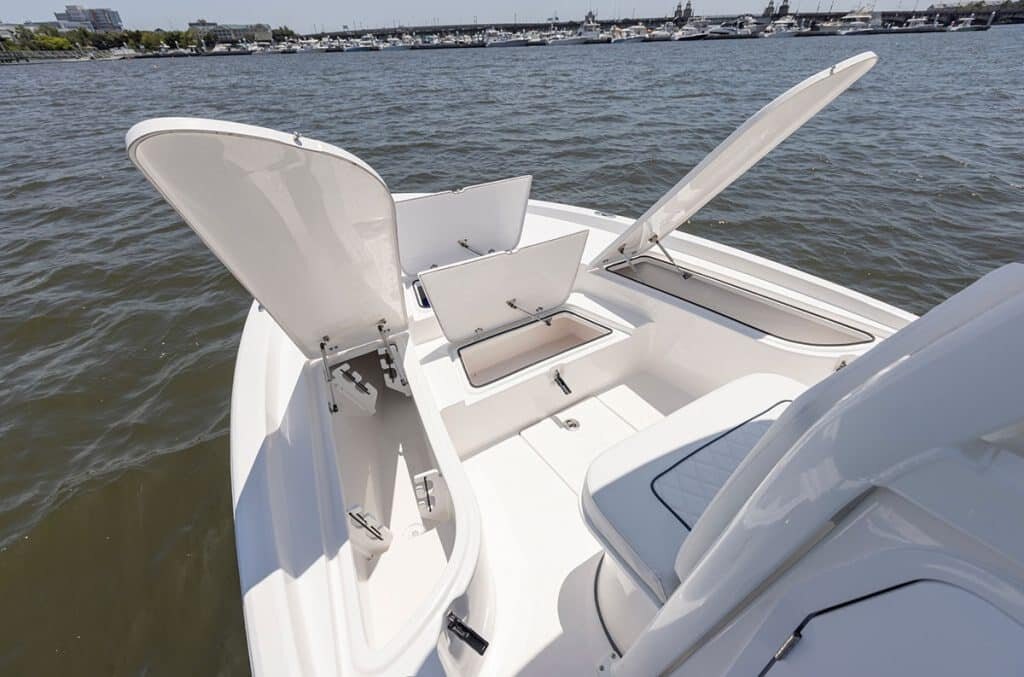

  • Insulated bow storage boxes

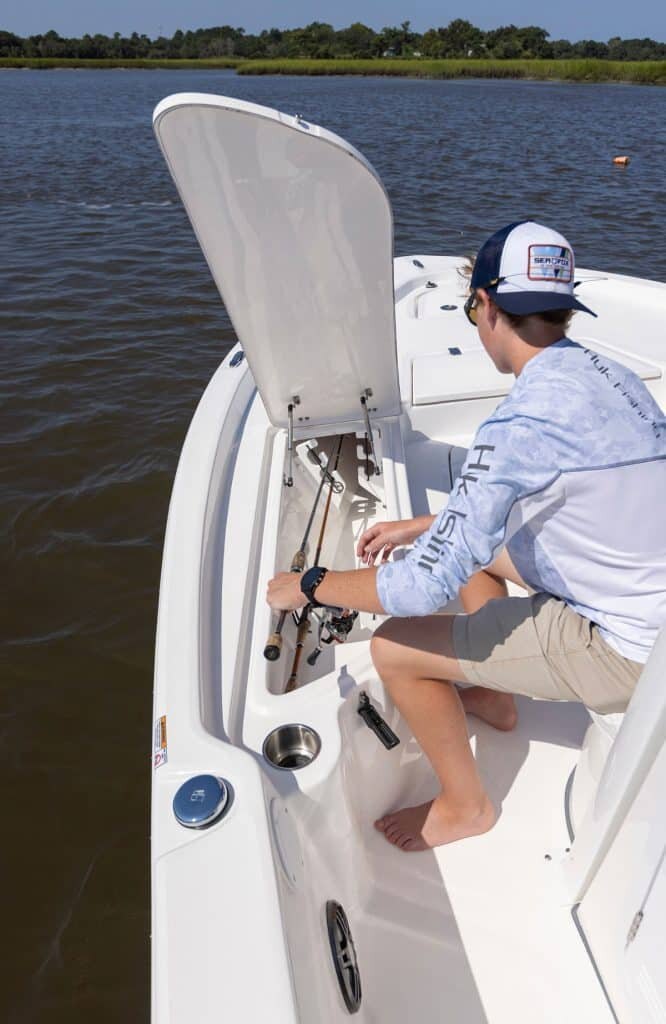

  • Rod storage lockers (Port and Starboard)
  • In-floor storage with 5-gallon bucket
  • Forward console seating with contoured backrest
  • Console livewell (10) gallons, 800 GPH aerator
  • Livewell lid window

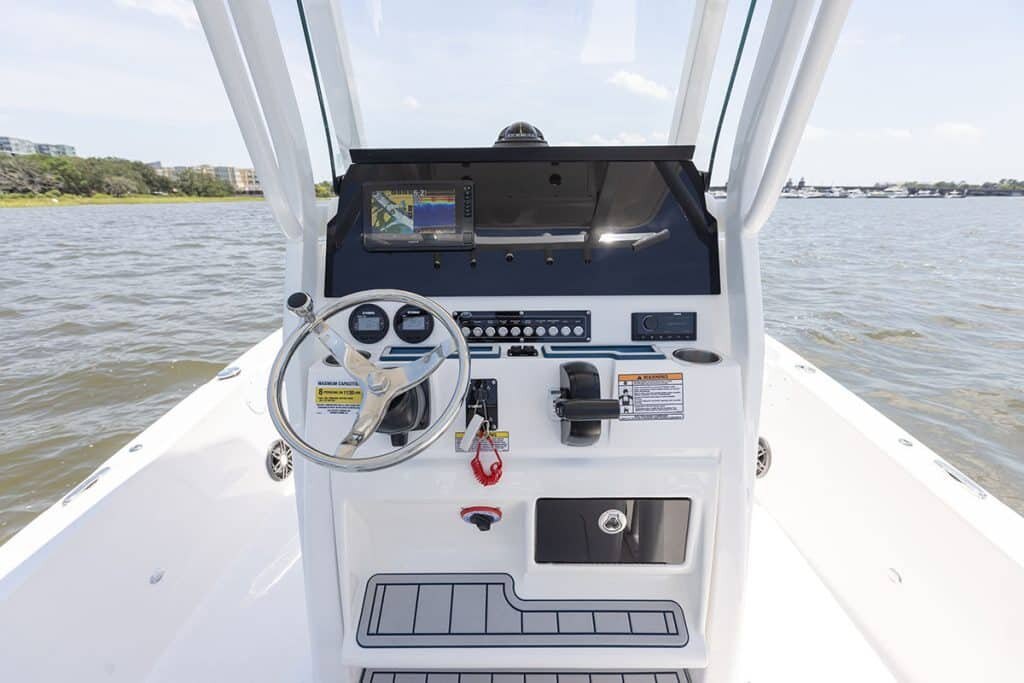

Helm:

  • Dometic SeaStar hydraulic steering system with tilt helm
  • Two digital gauges with backlighting. Tachometer and speedometer with volt, fuel, and push button functions
  • For Yamaha digital motors (Multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions. Display may vary with availability. Helm will vary with engine choice.)
  • Acrylic Dash
  • Fusion Apollo Marine Stereo
  • Six Fusion marine speakers in deck
  • Windscreen
  • Top mount compass on console
  • Console dash shroud
  • Dash space for flush electronics (compatible for two 12" displays)
  • Stainless steel steering wheel with turning knob
  • Lockable console door
  • Horn
  • Console handrails
  • Integrated console footrest
  • 12-volt power point
  • Battery switch
  • Console courtesy lights
  • Pre-rigging for two batteries
  • Marine grade soft mat decking and console accents
  • Easy access battery compartment (holds up to six batteries)

Bilge:

  • Marine fuel/water separating filter
  • (2) 1100 GPH bilge pumps with built in electronic float switches
  • Raw water pump

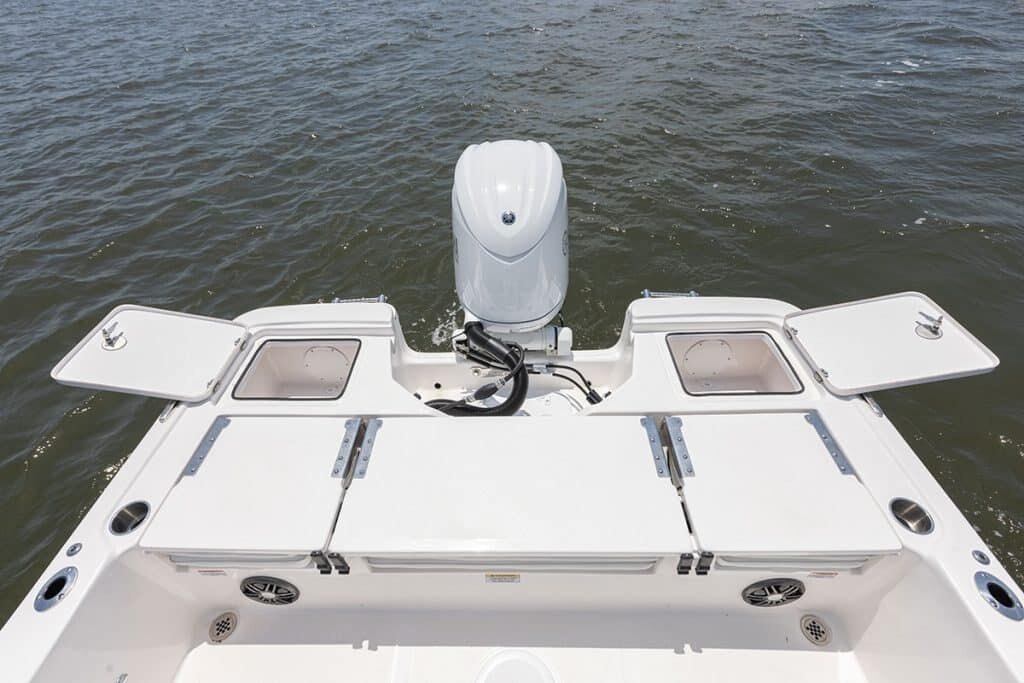

Transom:

  • Transom storage compartments - plumbed and insulated for use as a cooler
  • Raw water washdown with splashwell outlet
  • Bulkhead fittings for hydraulic hoses in splashwell
  • Stainless steel transom saver
  • Stainless steel rear boarding telescopic ladders with integrated hull platforms
  • Marine grade soft mat decking and console accents
  • Stainless steel through bolted grab rail
  • Electric trim tabs
  • Stainless steel U-bolts on port and starboard transom

Cockpit:

  • Leaning post helm seating with backrest and hinged bolsters
  • Stainless steel compression latches
  • Cup holders (6)
  • Stainless steel rod holders (4)

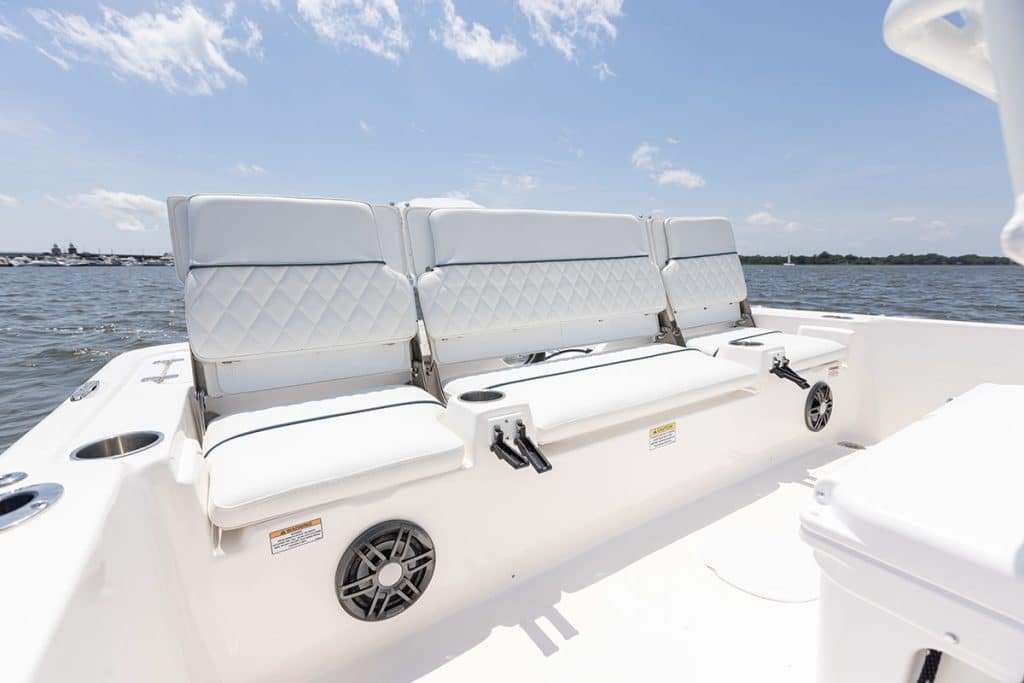

  • Aft bench seat with easy access hinged cushions
  • Self bailing cockpit with stainless steel grates
  • Transom livewell (26) gallons, 800 GPH aerator
  • Livewell light

Other great features:

  • Composite hull & deck
  • Isothalic gelcoat
  • Vinyl ester barrier coat
  • Sand-grip deck surface
  • Stainless steel rub rail
  • Stainless steel fasteners
  • Stainless steel through hulls
  • Stainless steel pull-up cleats (7)
  • Limited Lifetime Hull Warranty

Note: Due to Sea Fox’s continuous innovation and improvements specifications can change without notice

Please visit our website for the most current list of available standards and options



top optional features

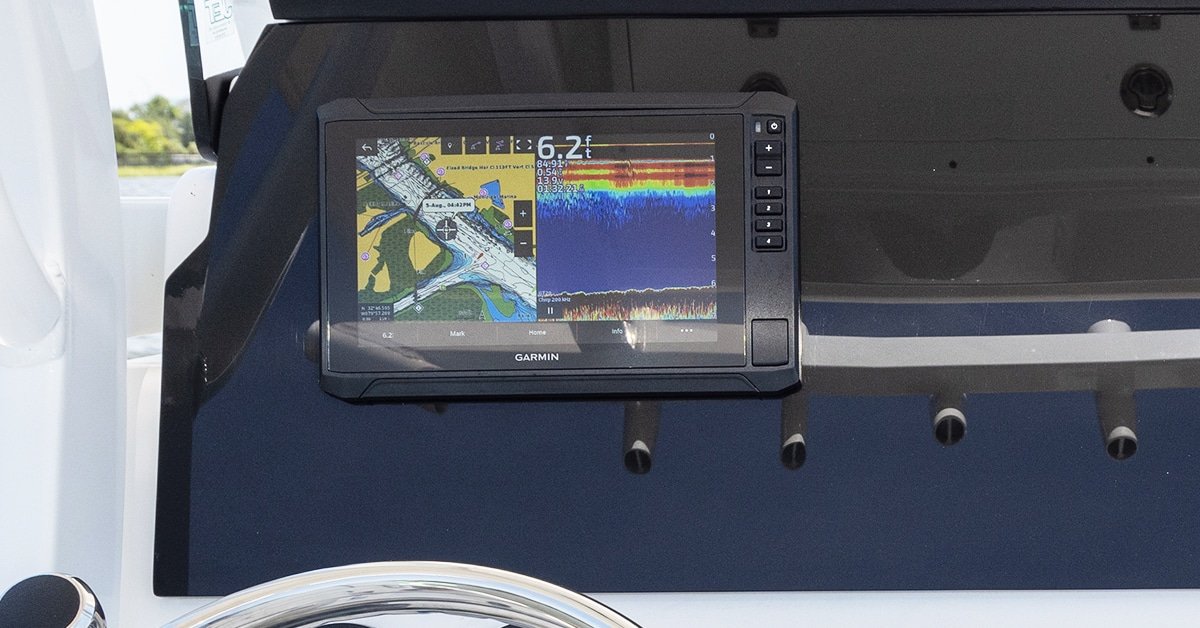

2026 Sea Fox 231B Bay Fox Garmin 943XSV

The Garmin 943XSV provides advanced navigation, sonar, and charting on a bright 9 inch touchscreen display.

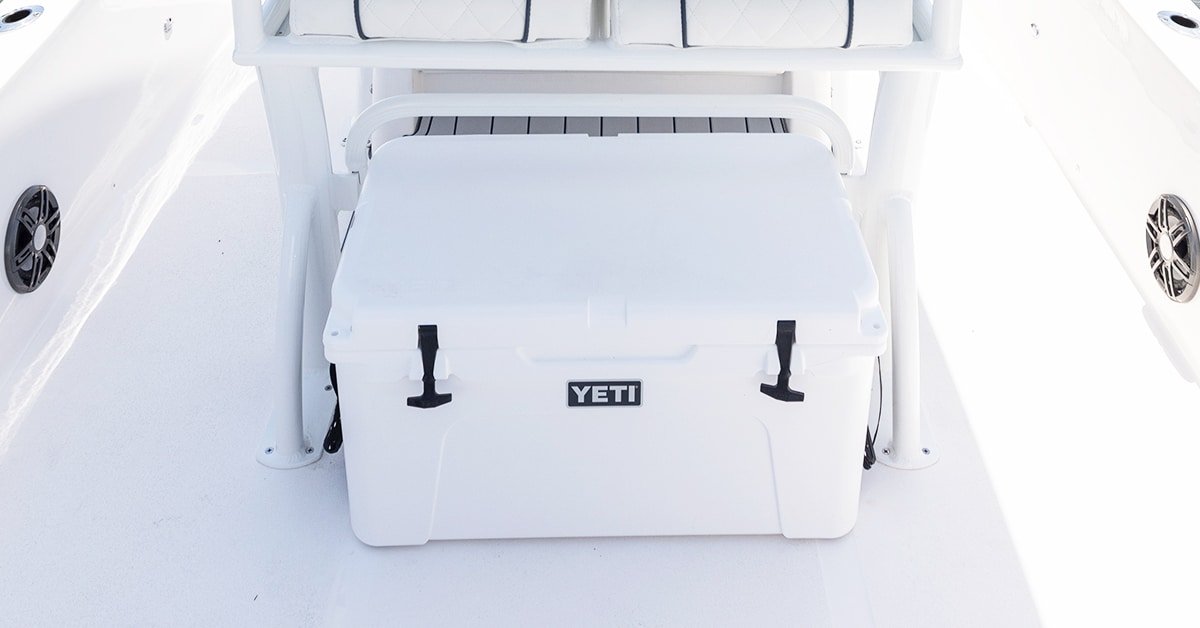

2026 Sea Fox 231B Bay Fox 65 Quart Premium Cooler

A 65 quart premium cooler with stainless steel strap down hardware is mounted at the leaning post to keep drinks or bait cold and secure while underway.

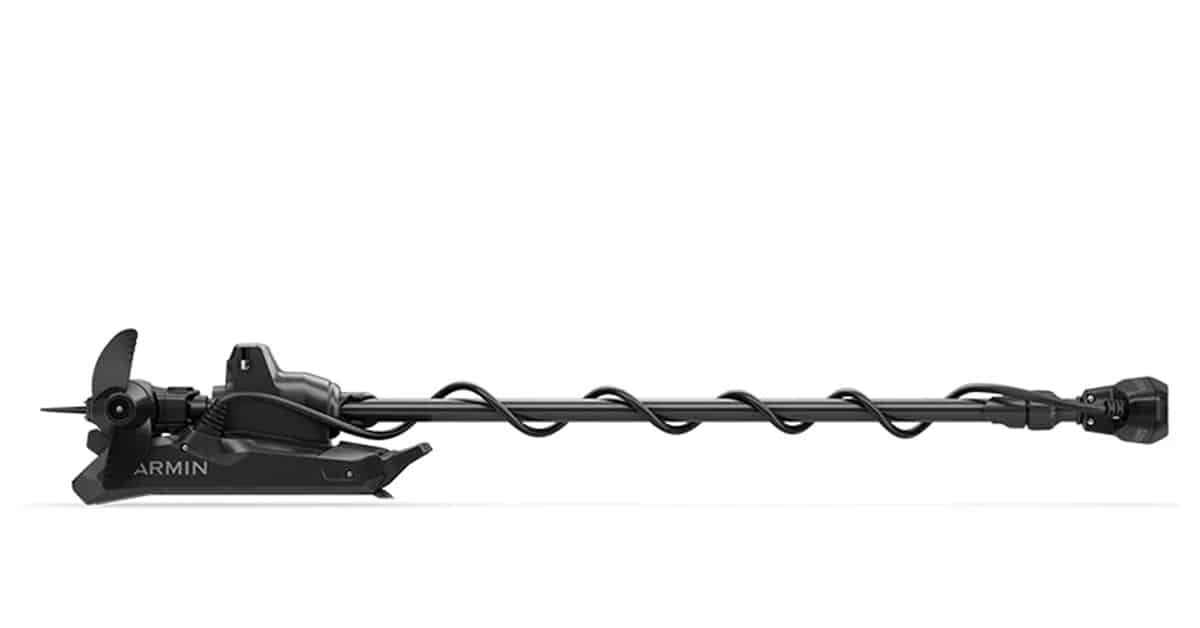

2026 Sea Fox 231B Bay Fox Garmin Kracken Trolling Motor

The Garmin Kraken trolling motor delivers powerful, ultra-quiet performance with precise GPS anchoring and control for serious shallow-water anglers.

Power

  • Yamaha F200XD
  • Yamaha F200XSA2
  • Painted Motor
    • White
    • Black
    • Light Gray

Gelcoat Accent

  • Stripe
  • Sides
  • Full Hull
    • White Pearl
    • Marsh Green
    • Bahama Blue
    • Arctic Blue
    • Channel Blue
    • Silver Shark
    • Bull Shark
    • Dune
    • South Beach Teal

Top

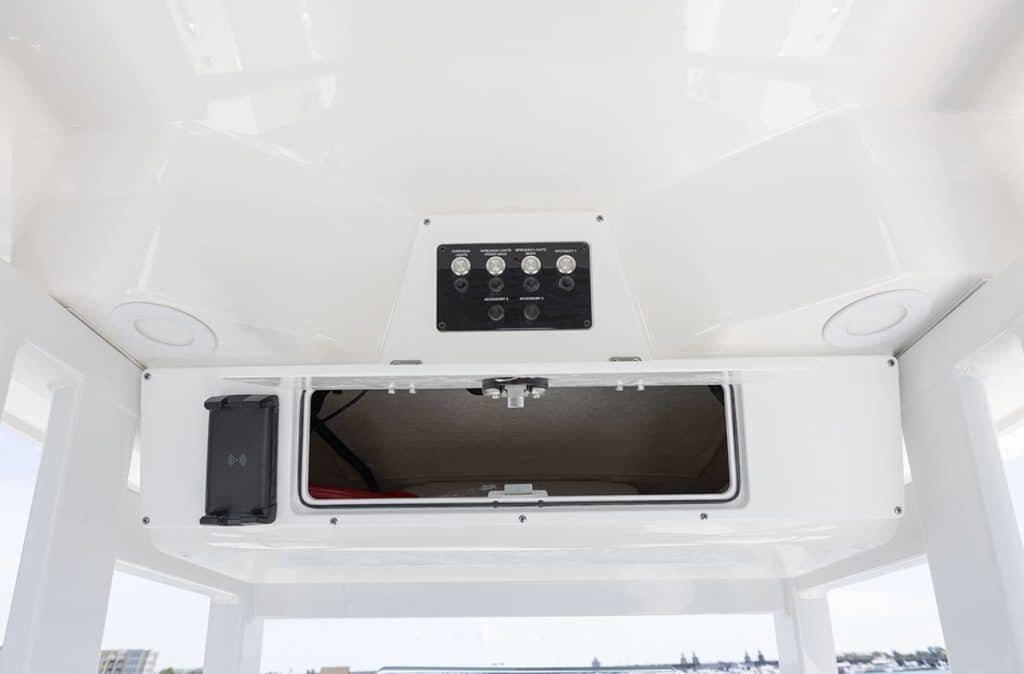

  • Ultima Hard Top with D Tubing
  • Ultima Hard Top with D Tubing and Glass Enclosure

Upgrade Packages

  • Tech Pack
    • Lighted Speakers
    • Underwater Lights
    • Upgraded Courtesy Lights
    • Wireless Phone Charger
  • Pro Pack
    • Cushioned Foot Mat
    • Gas Shocks on Two Bow Lids
    • Four Quick Release Fender Deck Mounts
    • Aft Livewell Bubbler

Upholstery Accent

  • Standard:
    • Light Gray Single Diamond Stitch
    • Navy Single Diamond Stitch
  •  Upgrade:
    • Light Gray Double Diamond Stitch
    • Navy Double Diamond Stitch
    • Harbor Double Diamond Stitch
    • Dune Double Diamond Stitch
    • Midnight Double Diamond Stitch
  • Bow Seating Package

Aluminum Accent

  • Powder Coating
    • White
    • Black
    • Light Gray
    • Jetty Gray

Electronic

  • Two Bank Battery Charger
  • Lenco Switch for Trim Tabs
    • LED indicators
  • Garmin 943 XSV Touchscreen
    • Thru-hull Transducer
    • (B150M CHIRP)
  • Garmin 1243 XSV Touchscreen
    • Thru-hull Transducer
    • (B150M CHIRP)
  • (2) Garmin 1243 XSV Twin Touchscreen
    • Thru-hull Transducer
    • (B150M CHIRP)
  • Garmin Kraken Trolling Motor

Other

  • Freshwater Washdown
    • Five Gallon Tank
  • Jack Plate
    • 8" offset
    • Blinker Switch
  • 65- Quart Premium Cooler with Stainless Steel Tie-Down Kit
  • Weathermax Bow Shade
    • Four Carbon Fiber Support Poles
    • Requires Hardtop Upgrade
  • Leaning Post Tackle Center
